INDUSTRIAL SPRINGS


Our industrial springs are custom-manufactured to meet the exact specifications and dimensions provided by our customers. We serve a wide range of industries, including toy manufacturing, automotive, industrial valves, and agricultural equipment.

Our springs are trusted in critical applications such as:
1.Toy assemblies
2.Automotive components
3.Industrial valve springs for LCV and NSCV (manufactured in SS304 and SS318 respectively)
4.Agricultural implements such as cultivators, rotavators, and more

Product Range:
1. Tension spring
2. Compression spring
3. Torsion spring
4. Double torsion springs
5. Wire form

Compression Spring


Compression Spring
Torsion Spring
Tension Spring

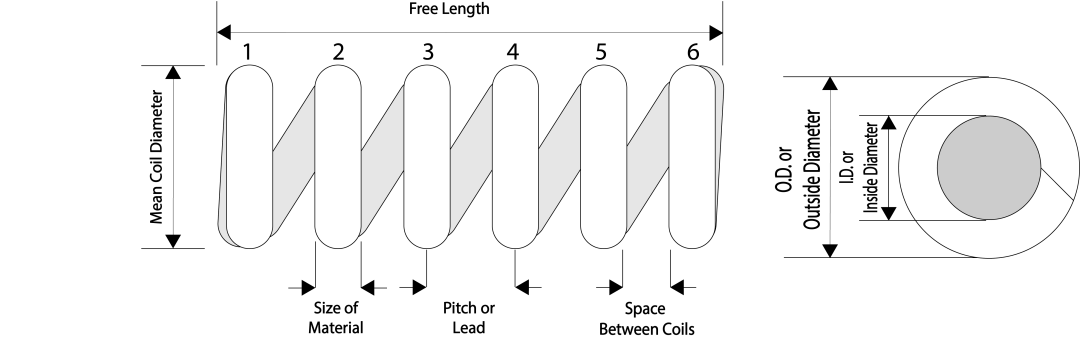

How to Determine the Size of a Spring

To ensure proper fit and performance, the following parameters should be considered when determining the size of a spring:
1. Wire Diameter
2. Outer Diameter
3. Free Length
4. Number of Coils
5. Spring Rate (Load per unit deflection)
6. Type of Ends (e.g., open, closed, ground) Drawings or specifications from the customer are preferred for precise manufacturing.

Spring Specifications by Type

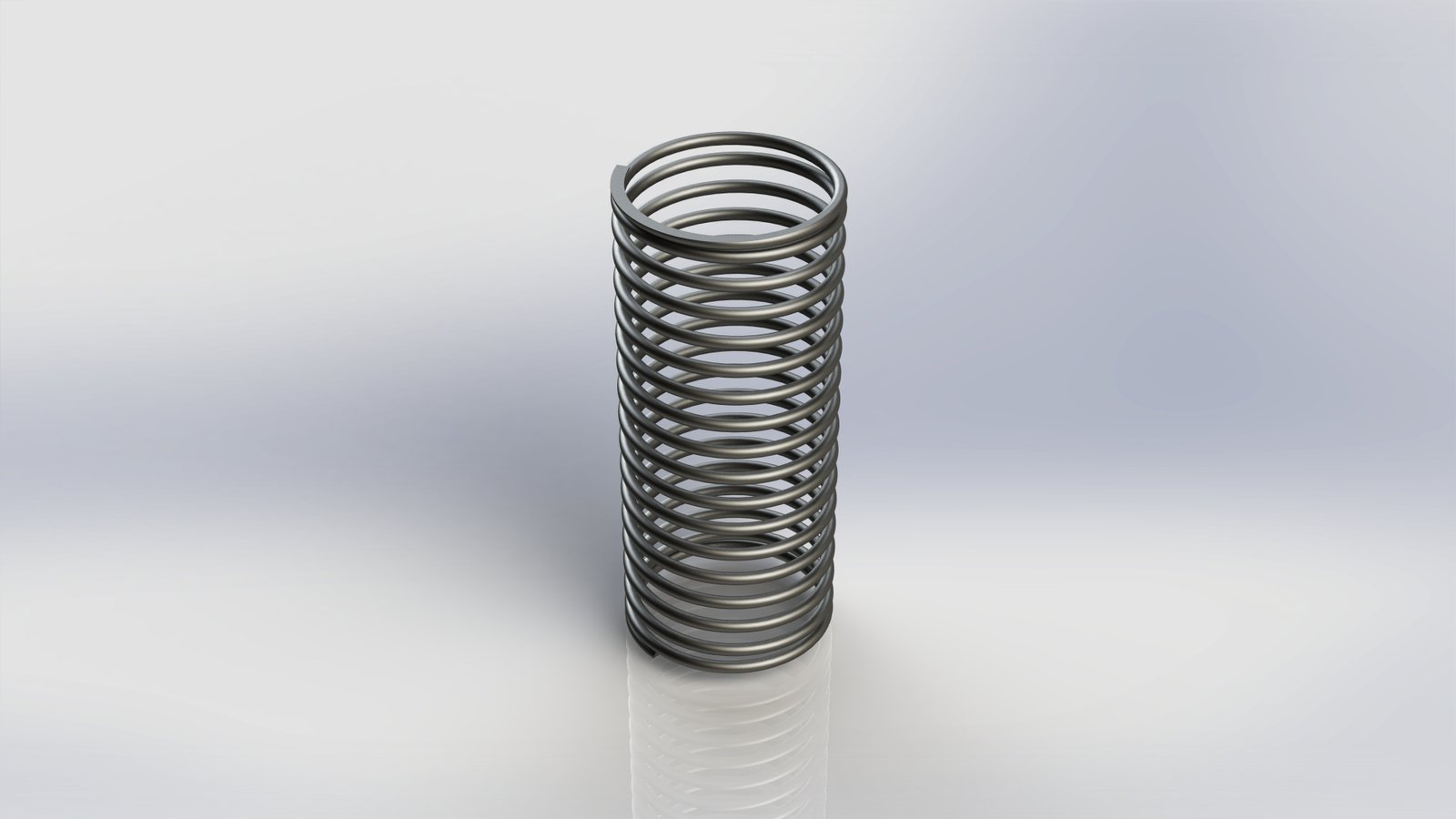

Compression Springs
Wire Diameter Range: 0.6 mm to 20 mm
Application: Used where resistance to compressive forces is required.


Compression Spring

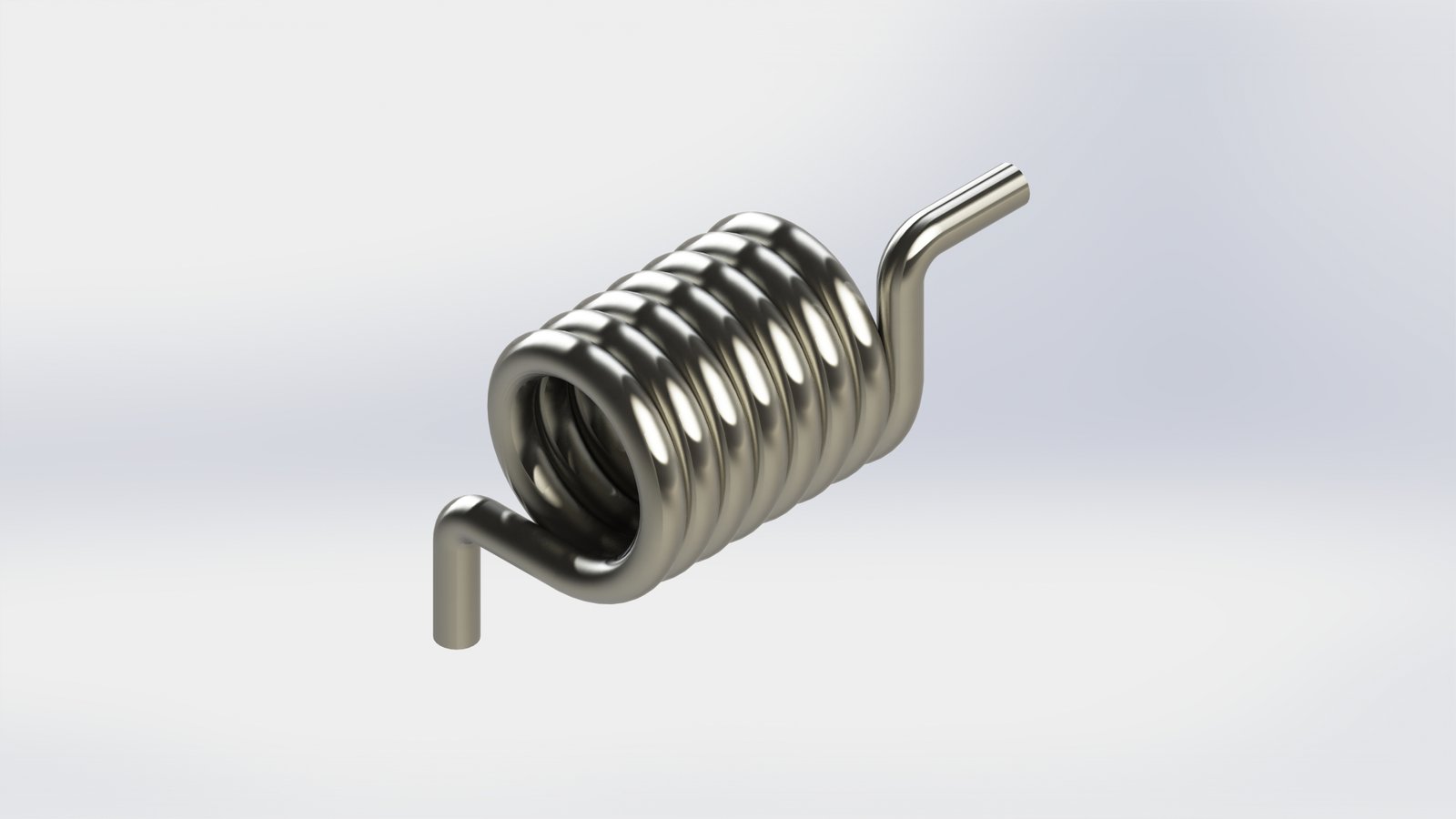

Torsion Springs
Wire Diameter Range: 0.6 mm to 12 mm
Application: Designed to apply torque or store rotational energy.

Torsion Spring

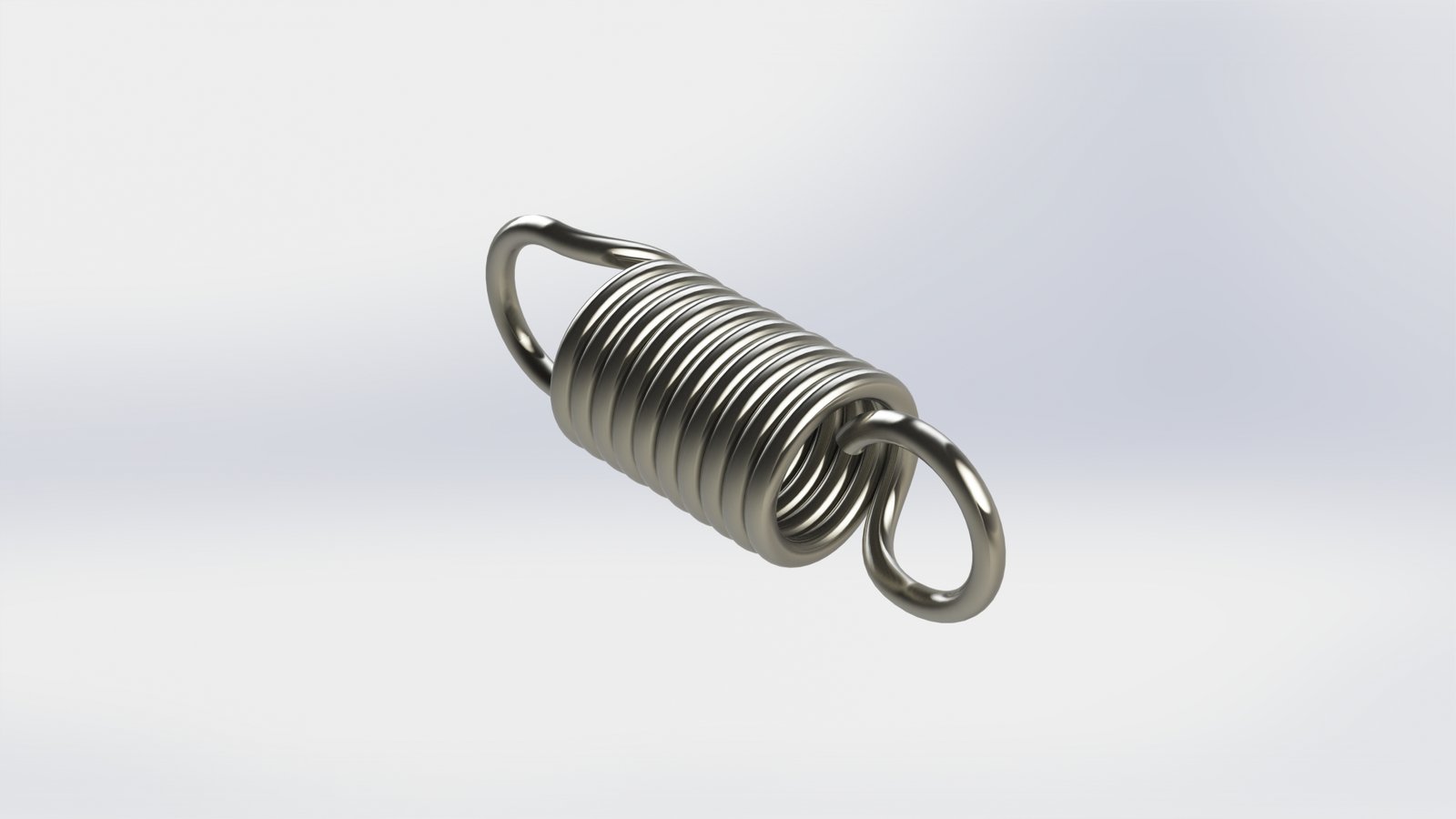

Tension springs
Wire Diameter Range: 0.6 mm to 12 mm
Application: Used to resist stretching and absorb tension.

Tension Spring
